MTWB Solid Lubrication Cylindrical Roller Bearings (CRB) are engineered for demanding industrial environments where conventional grease lubrication is difficult or impossible. Featuring advanced solid lubricant technology, these bearings provide maintenance-free operation, enhanced contamination resistance, and extended service life in mining, steel production, conveyors, food processing, and heavy-duty machinery. MTWB offers OEM and customized solid lubrication CRBs that deliver high radial load capacity, reduced downtime, and reliable performance under harsh operating conditions.

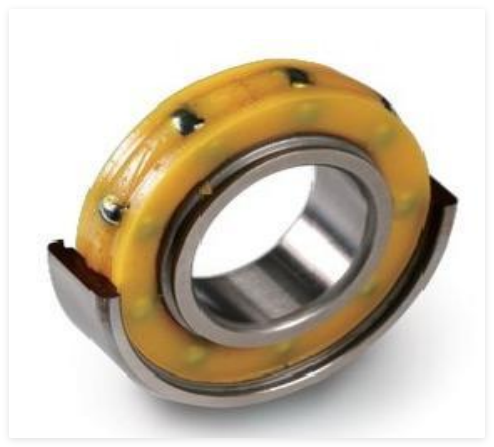

MTWB Solid Lubrication CRB Cylindrical Roller Bearing is a high-performance self-lubricating bearing solution engineered for applications where conventional lubrication is difficult, impossible, or uneconomical. Designed with embedded solid lubricant technology, this cylindrical roller bearing delivers reliable operation under high loads, low speeds, elevated temperatures, dusty environments, and heavy industrial conditions.
As a specialized solid lubrication bearing, the CRB cylindrical roller bearing eliminates the need for external oil supply systems, significantly reducing maintenance costs while extending equipment service life.MTWB helps OEM manufacturers improve equipment reliability and achieve maintenance-free operation through application-specific bearing solutions.
Maintenance-free operation
Integrated solid lubricant
High radial load capacity
Excellent contamination resistance
Long service life
Reduced lubrication costs
Suitable for low and medium speeds
OEM customization available
The Solid Lubrication CRB Cylindrical Roller Bearing utilizes an advanced polymer matrix adsorption technology. Polymer material is injected into the bearing through a specialized process, where it adsorbs saturated lubricating oil.The polymer ensures that the lubricant remains tightly and continuously in contact with the raceways and rollers, effectively preventing contaminants from entering the bearing interior.
The lubricating oil is “stored” in the micro-pores within the polymer based on surface tension. During operation, a small portion of the oil slowly moves to the material surface through capillary action. When operation stops, the lubricating oil re-adheres to the polymer for “storage”.This self-regulating lubrication cycle ensures consistent performance throughout the bearing’s service life.
| Parameter | Specification |
|---|---|
| Bearing Type | Cylindrical Roller Bearing (CRB) with Solid Lubrication |
| Lubrication Type | Solid Lubricant (Polymer Matrix Adsorption) |
| Lubricant Content | 40–95% (customizable) |
| Operating Temperature Range | Up to 200°C (depending on lubricant grade) |
| Speed Capability | Up to 5,000 RPM (depending on design and lubricant grade) |
| Food Grade Option | Available |
With polymer matrix adsorption saturated lubricant technology, the lubricant seamlessly adheres to the raceway and rolling elements without requiring an external oil supply system.
Re-greasing is completely eliminated. The embedded sealing design effectively prevents pollutant invasion, improves water flushing resistance by 80%, and significantly reduces the risk of downtime caused by lubrication failure.
Solid lubricant content is 2–4 times higher than traditional lubricants. Bearing service life can be extended by more than 3 times, significantly reducing the frequency of spare parts replacement.
The solid lubricant remains in close contact with the raceway and rollers, almost filling the entire bearing. The remaining space effectively prevents pollutants from entering the bearing, protecting it from contamination-related failures.
Lubricating oil is stored in the micro-pores inside the polymer based on surface tension. During operation, oil transfers to the material surface under capillary action. When operation stops, oil is reabsorbed into the polymer for “storage,” preventing environmental pollution caused by lubricant leakage.
Suitable for high ambient temperatures (up to 200°C), high humidity, dust, and chemical corrosion environments.The integral bearing seal further improves oil preservation.
√Excellent Anti-Rinsing Capability
Solid lubricants support integral seals and provide very good anti-rinsing ability.
The Solid Lubrication CRB Cylindrical Roller Bearing is ideal for a wide range of demanding industrial applications:
| Industry | Application Benefits |
|---|---|
| Food & Beverage Machinery | Solves contamination problems caused by traditional lubricating oil leakage; improves food safety levels |
MTWB offers fully customized solid lubrication cylindrical roller bearing solutions tailored to specific application requirements.
Customization options include:
Bearing dimensions and load ratings
Solid lubricant grade selection
Base oil viscosity
Temperature and speed requirements
Food-grade certification
Sealing configurations
Special coatings or materials
A solid lubrication cylindrical roller bearing uses a specially formulated solid lubricant instead of conventional grease to provide continuous lubrication while minimizing maintenance.
Maintenance-free
Longer service life
Less contamination
Reduced lubricant leakage
Lower maintenance costs
Mining equipment, steel mills, conveyors, food processing machinery, agricultural machinery, and heavy industrial equipment.
Yes. MTWB supports OEM and ODM manufacturing based on drawings or samples.
Chrome Steel, Stainless Steel, Heat-treated Steel, and customized cage materials.
Contact MTWB today to discuss your related solid lubrication CRB cylindrical roller bearing requirements and receive a professional bearing solution. Click here to know MTWB whole solid lubrication bearing solution.
MTWB (Mighty Way Industrial Limited) is a professional sold lubrication crb cylindrical roller bearings manufacturer and OEM bearing supplier specializing in high precision miniature bearings and application-specific bearing solutions.
With advanced manufacturing capabilities, comprehensive testing systems, and engineering expertise, MTWB helps global customers develop reliable bearing solutions for demanding applications.
