R09-Inch Series Deep Groove Ball Bearing

Hot tags:MTWB Bearing R09-Inch Series Deep Groove Ball Bearing a specialized manufacturer of tailor-made ball or roller bearings, Our engineers offer technical support all along, making MTWB an ideal OEM bearing partner for international OEM.
Inch Series Deep Groove Ball Bearing
Request Quote >
  • Inch Series Deep Groove Ball Bearing
  • Inch Series Deep Groove Ball Bearing

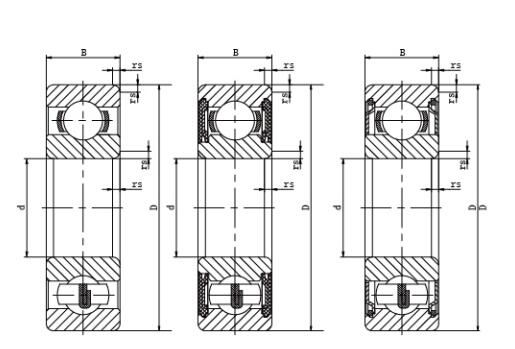

Dimension and Parameters

BEARING NO.
Open :R09
Shielded :-
Contacting seal :
Bore Diameter
d(mm) :1.016
Outer Diameter
D(mm) :3.175
Width
Open Type
B(mm) :1.191
Closed Type
B(mm) :
Chamfer
rs(min)(mm) :0.05
Basic Load
Cr(N) :57
Cor(N) :14
Max Speed
Grease(X1000rpm) :150
Max Speed
Open(X1000rpm) :
