F607-Metric Series Flanged Bearing

Hot tags:MTWB Bearing F607-Metric Series Flanged Bearing a specialized manufacturer of tailor-made ball or roller bearings, Our engineers offer technical support all along, making MTWB an ideal OEM bearing partner for international OEM.
Metric Series Flanged Bearing
Request Quote >
  • Metric Series Flanged Bearing
  • Metric Series Flanged Bearing

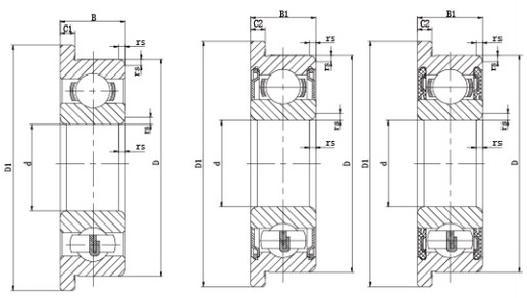

Dimension and Parameters

BEARING NO.
Open :F607
Shielded :F607ZZ
Contacting seal :2RS
Bore Diameter
d(mm) :7
Outer Diameter
D(mm) :19
Width
Open Type
B(mm) :6
Closed Type
B1(mm) :6
Chamfer
rs(min)(mm) :0.3
Flange outer diameter
Open Type
D1(mm) :22
Closed Type
D1(mm) :22
Flange width
Open Type
C1(mm) :1.5
Closed Type
C2(mm) :1.5
Basic Load
Cr(N) :2805
Cor(N) :1060
Max Speed
Grease(X1000rpm) :32
Max Speed
Open Type(X1000rpm) :43
